1. Essential Composition and Architectural Style of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Product Class

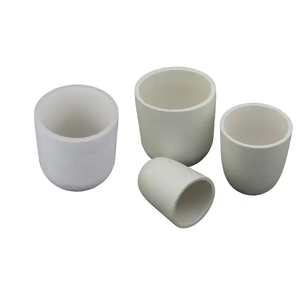

(Transparent Ceramics)
Quartz ceramics, likewise called merged quartz or merged silica ceramics, are innovative not natural materials derived from high-purity crystalline quartz (SiO TWO) that undertake regulated melting and loan consolidation to create a thick, non-crystalline (amorphous) or partly crystalline ceramic structure.
Unlike conventional porcelains such as alumina or zirconia, which are polycrystalline and composed of several phases, quartz porcelains are predominantly made up of silicon dioxide in a network of tetrahedrally coordinated SiO four units, offering exceptional chemical purity– frequently surpassing 99.9% SiO ₂.
The distinction in between fused quartz and quartz ceramics hinges on processing: while merged quartz is usually a totally amorphous glass created by quick cooling of liquified silica, quartz porcelains might include regulated formation (devitrification) or sintering of great quartz powders to accomplish a fine-grained polycrystalline or glass-ceramic microstructure with enhanced mechanical robustness.
This hybrid method integrates the thermal and chemical security of merged silica with enhanced crack sturdiness and dimensional stability under mechanical load.
1.2 Thermal and Chemical Security Mechanisms
The phenomenal performance of quartz porcelains in extreme environments originates from the solid covalent Si– O bonds that develop a three-dimensional network with high bond power (~ 452 kJ/mol), providing amazing resistance to thermal degradation and chemical assault.
These products show a very reduced coefficient of thermal development– roughly 0.55 × 10 ⁻⁶/ K over the range 20– 300 ° C– making them very immune to thermal shock, an important feature in applications involving quick temperature level biking.
They keep architectural honesty from cryogenic temperature levels approximately 1200 ° C in air, and even greater in inert ambiences, prior to softening starts around 1600 ° C.
Quartz ceramics are inert to most acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the stability of the SiO ₂ network, although they are prone to assault by hydrofluoric acid and strong antacid at elevated temperature levels.
This chemical resilience, incorporated with high electric resistivity and ultraviolet (UV) openness, makes them perfect for usage in semiconductor handling, high-temperature heating systems, and optical systems revealed to rough problems.
2. Production Processes and Microstructural Control

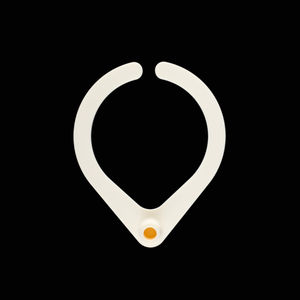

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The production of quartz ceramics involves advanced thermal handling methods designed to preserve pureness while accomplishing preferred thickness and microstructure.
One usual approach is electric arc melting of high-purity quartz sand, followed by regulated air conditioning to form merged quartz ingots, which can after that be machined right into components.
For sintered quartz ceramics, submicron quartz powders are compressed through isostatic pushing and sintered at temperatures between 1100 ° C and 1400 ° C, frequently with marginal additives to promote densification without inducing extreme grain growth or phase change.
A crucial challenge in handling is preventing devitrification– the spontaneous formation of metastable silica glass right into cristobalite or tridymite stages– which can compromise thermal shock resistance as a result of quantity adjustments during stage shifts.
Suppliers use specific temperature control, quick air conditioning cycles, and dopants such as boron or titanium to reduce unwanted formation and maintain a steady amorphous or fine-grained microstructure.
2.2 Additive Manufacturing and Near-Net-Shape Construction
Current advances in ceramic additive manufacturing (AM), particularly stereolithography (RUN-DOWN NEIGHBORHOOD) and binder jetting, have enabled the manufacture of complicated quartz ceramic elements with high geometric precision.
In these processes, silica nanoparticles are put on hold in a photosensitive material or selectively bound layer-by-layer, complied with by debinding and high-temperature sintering to achieve complete densification.
This technique reduces product waste and enables the creation of intricate geometries– such as fluidic channels, optical tooth cavities, or heat exchanger components– that are hard or impossible to accomplish with typical machining.
Post-processing techniques, including chemical vapor seepage (CVI) or sol-gel finish, are occasionally related to seal surface area porosity and improve mechanical and environmental durability.
These technologies are broadening the application range of quartz porcelains right into micro-electromechanical systems (MEMS), lab-on-a-chip devices, and customized high-temperature fixtures.
3. Practical Qualities and Performance in Extreme Environments
3.1 Optical Openness and Dielectric Habits
Quartz ceramics display special optical residential or commercial properties, consisting of high transmission in the ultraviolet, noticeable, and near-infrared range (from ~ 180 nm to 2500 nm), making them crucial in UV lithography, laser systems, and space-based optics.
This transparency emerges from the absence of electronic bandgap changes in the UV-visible variety and very little spreading due to homogeneity and low porosity.
Additionally, they possess superb dielectric properties, with a low dielectric constant (~ 3.8 at 1 MHz) and minimal dielectric loss, enabling their usage as protecting components in high-frequency and high-power electronic systems, such as radar waveguides and plasma activators.
Their ability to preserve electrical insulation at elevated temperatures better improves dependability in demanding electric environments.
3.2 Mechanical Behavior and Long-Term Longevity
Despite their high brittleness– a common attribute among porcelains– quartz porcelains show good mechanical strength (flexural toughness approximately 100 MPa) and outstanding creep resistance at high temperatures.
Their hardness (around 5.5– 6.5 on the Mohs range) provides resistance to surface area abrasion, although treatment has to be taken throughout handling to prevent breaking or split proliferation from surface area defects.
Environmental longevity is one more essential advantage: quartz porcelains do not outgas considerably in vacuum, resist radiation damages, and keep dimensional stability over long term direct exposure to thermal biking and chemical environments.
This makes them favored materials in semiconductor construction chambers, aerospace sensing units, and nuclear instrumentation where contamination and failing must be minimized.
4. Industrial, Scientific, and Emerging Technological Applications
4.1 Semiconductor and Photovoltaic Manufacturing Solutions
In the semiconductor sector, quartz ceramics are ubiquitous in wafer handling tools, including furnace tubes, bell containers, susceptors, and shower heads made use of in chemical vapor deposition (CVD) and plasma etching.
Their purity stops metal contamination of silicon wafers, while their thermal stability ensures uniform temperature distribution during high-temperature processing steps.
In solar production, quartz elements are used in diffusion heaters and annealing systems for solar battery manufacturing, where constant thermal accounts and chemical inertness are necessary for high return and efficiency.
The demand for bigger wafers and greater throughput has driven the advancement of ultra-large quartz ceramic structures with boosted homogeneity and decreased defect density.
4.2 Aerospace, Protection, and Quantum Innovation Combination
Beyond industrial handling, quartz ceramics are utilized in aerospace applications such as projectile assistance windows, infrared domes, and re-entry lorry components because of their ability to withstand extreme thermal slopes and wind resistant anxiety.
In defense systems, their transparency to radar and microwave frequencies makes them appropriate for radomes and sensing unit housings.
More just recently, quartz ceramics have actually found duties in quantum innovations, where ultra-low thermal growth and high vacuum cleaner compatibility are needed for accuracy optical dental caries, atomic catches, and superconducting qubit units.
Their capability to lessen thermal drift makes certain lengthy comprehensibility times and high dimension accuracy in quantum computing and noticing systems.
In summary, quartz ceramics stand for a class of high-performance products that link the void between conventional ceramics and specialty glasses.
Their unmatched mix of thermal security, chemical inertness, optical openness, and electrical insulation makes it possible for modern technologies operating at the limits of temperature, purity, and accuracy.
As making methods progress and demand expands for materials capable of withstanding increasingly severe problems, quartz porcelains will certainly remain to play a fundamental duty ahead of time semiconductor, energy, aerospace, and quantum systems.
