1. Product Fundamentals and Structural Attributes of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

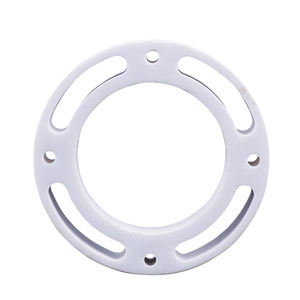

(Alumina Ceramic Substrates)
Alumina ceramic substrates, mainly composed of aluminum oxide (Al two O ₃), function as the foundation of contemporary electronic packaging because of their extraordinary equilibrium of electrical insulation, thermal stability, mechanical strength, and manufacturability.
One of the most thermodynamically steady phase of alumina at heats is diamond, or α-Al ₂ O FIVE, which crystallizes in a hexagonal close-packed oxygen latticework with aluminum ions occupying two-thirds of the octahedral interstitial sites.
This thick atomic arrangement imparts high hardness (Mohs 9), exceptional wear resistance, and solid chemical inertness, making α-alumina ideal for rough operating settings.
Commercial substrates generally consist of 90– 99.8% Al Two O FIVE, with minor additions of silica (SiO TWO), magnesia (MgO), or uncommon planet oxides used as sintering help to advertise densification and control grain growth throughout high-temperature handling.
Greater purity grades (e.g., 99.5% and over) exhibit superior electrical resistivity and thermal conductivity, while lower purity variations (90– 96%) use cost-effective services for less requiring applications.
1.2 Microstructure and Issue Design for Electronic Dependability
The performance of alumina substrates in electronic systems is seriously based on microstructural uniformity and problem minimization.
A fine, equiaxed grain structure– typically ranging from 1 to 10 micrometers– makes certain mechanical stability and minimizes the possibility of split breeding under thermal or mechanical stress and anxiety.
Porosity, especially interconnected or surface-connected pores, should be reduced as it deteriorates both mechanical stamina and dielectric performance.
Advanced processing techniques such as tape casting, isostatic pushing, and regulated sintering in air or regulated atmospheres make it possible for the production of substratums with near-theoretical thickness (> 99.5%) and surface area roughness listed below 0.5 µm, crucial for thin-film metallization and cable bonding.
Furthermore, pollutant partition at grain limits can cause leakage currents or electrochemical migration under predisposition, demanding strict control over raw material purity and sintering conditions to make certain long-lasting integrity in moist or high-voltage settings.
2. Production Processes and Substratum Construction Technologies
( Alumina Ceramic Substrates)
2.1 Tape Spreading and Green Body Processing
The manufacturing of alumina ceramic substrates begins with the preparation of a highly dispersed slurry containing submicron Al two O four powder, organic binders, plasticizers, dispersants, and solvents.
This slurry is processed through tape spreading– a continual approach where the suspension is spread over a relocating provider movie making use of a precision medical professional blade to achieve consistent density, normally in between 0.1 mm and 1.0 mm.
After solvent dissipation, the resulting “eco-friendly tape” is adaptable and can be punched, pierced, or laser-cut to form through holes for upright affiliations.
Several layers may be laminated to develop multilayer substratums for complicated circuit integration, although most of commercial applications make use of single-layer arrangements as a result of set you back and thermal development factors to consider.
The green tapes are then carefully debound to remove natural additives with managed thermal decay before last sintering.
2.2 Sintering and Metallization for Circuit Integration
Sintering is carried out in air at temperatures in between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore elimination and grain coarsening to achieve full densification.
The linear contraction throughout sintering– commonly 15– 20%– have to be specifically predicted and made up for in the layout of green tapes to guarantee dimensional accuracy of the last substratum.
Following sintering, metallization is put on form conductive traces, pads, and vias.
Two key approaches dominate: thick-film printing and thin-film deposition.
In thick-film innovation, pastes containing metal powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a decreasing atmosphere to create durable, high-adhesion conductors.
For high-density or high-frequency applications, thin-film procedures such as sputtering or dissipation are made use of to deposit attachment layers (e.g., titanium or chromium) adhered to by copper or gold, allowing sub-micron pattern through photolithography.
Vias are loaded with conductive pastes and terminated to establish electric interconnections in between layers in multilayer designs.
3. Practical Features and Performance Metrics in Electronic Solution
3.1 Thermal and Electrical Behavior Under Functional Stress
Alumina substratums are prized for their positive mix of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al Two O TWO), which makes it possible for effective heat dissipation from power tools, and high volume resistivity (> 10 ¹⁴ Ω · centimeters), making certain very little leak current.
Their dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is stable over a large temperature and regularity array, making them appropriate for high-frequency circuits as much as numerous gigahertz, although lower-κ products like aluminum nitride are preferred for mm-wave applications.
The coefficient of thermal growth (CTE) of alumina (~ 6.8– 7.2 ppm/K) is fairly well-matched to that of silicon (~ 3 ppm/K) and particular product packaging alloys, lowering thermo-mechanical anxiety during device procedure and thermal cycling.
However, the CTE mismatch with silicon continues to be a concern in flip-chip and straight die-attach configurations, usually requiring compliant interposers or underfill materials to alleviate tiredness failing.
3.2 Mechanical Robustness and Ecological Sturdiness
Mechanically, alumina substratums show high flexural toughness (300– 400 MPa) and excellent dimensional stability under load, allowing their use in ruggedized electronics for aerospace, vehicle, and industrial control systems.
They are immune to resonance, shock, and creep at raised temperature levels, keeping structural honesty as much as 1500 ° C in inert atmospheres.
In damp environments, high-purity alumina reveals marginal dampness absorption and superb resistance to ion migration, making sure long-lasting reliability in exterior and high-humidity applications.
Surface solidity additionally secures versus mechanical damage during handling and setting up, although care needs to be required to avoid side breaking because of intrinsic brittleness.
4. Industrial Applications and Technical Impact Across Sectors
4.1 Power Electronic Devices, RF Modules, and Automotive Systems
Alumina ceramic substratums are ubiquitous in power digital components, including shielded entrance bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they supply electrical seclusion while assisting in heat transfer to warmth sinks.
In radio frequency (RF) and microwave circuits, they work as carrier systems for hybrid integrated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks due to their stable dielectric buildings and low loss tangent.
In the automotive sector, alumina substrates are utilized in engine control devices (ECUs), sensing unit packages, and electric lorry (EV) power converters, where they withstand heats, thermal biking, and direct exposure to destructive fluids.
Their reliability under harsh conditions makes them important for safety-critical systems such as anti-lock stopping (ABS) and advanced vehicle driver aid systems (ADAS).
4.2 Medical Instruments, Aerospace, and Emerging Micro-Electro-Mechanical Solutions
Past customer and commercial electronic devices, alumina substratums are employed in implantable medical devices such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are extremely important.
In aerospace and defense, they are utilized in avionics, radar systems, and satellite interaction components as a result of their radiation resistance and stability in vacuum cleaner settings.
In addition, alumina is significantly used as a structural and shielding platform in micro-electro-mechanical systems (MEMS), consisting of stress sensing units, accelerometers, and microfluidic tools, where its chemical inertness and compatibility with thin-film processing are useful.
As digital systems continue to require higher power thickness, miniaturization, and integrity under severe conditions, alumina ceramic substratums remain a keystone material, bridging the gap between efficiency, cost, and manufacturability in innovative digital product packaging.
