1. Structure and Structural Residences of Fused Quartz
1.1 Amorphous Network and Thermal Security

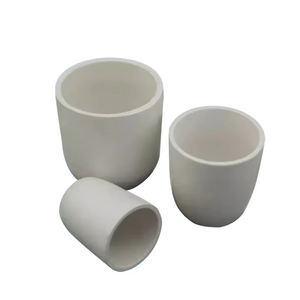

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from merged silica, a synthetic form of silicon dioxide (SiO TWO) stemmed from the melting of all-natural quartz crystals at temperature levels exceeding 1700 ° C.
Unlike crystalline quartz, fused silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys exceptional thermal shock resistance and dimensional stability under fast temperature adjustments.
This disordered atomic structure prevents cleavage along crystallographic aircrafts, making integrated silica much less vulnerable to splitting throughout thermal cycling contrasted to polycrystalline porcelains.
The material exhibits a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), among the lowest among design products, enabling it to hold up against severe thermal slopes without fracturing– a vital home in semiconductor and solar cell production.
Integrated silica also keeps exceptional chemical inertness versus most acids, liquified metals, and slags, although it can be gradually etched by hydrofluoric acid and hot phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending upon purity and OH web content) enables sustained procedure at elevated temperature levels needed for crystal growth and steel refining procedures.
1.2 Purity Grading and Trace Element Control
The performance of quartz crucibles is very depending on chemical pureness, specifically the concentration of metallic contaminations such as iron, sodium, potassium, light weight aluminum, and titanium.
Also trace amounts (parts per million degree) of these impurities can move right into liquified silicon throughout crystal development, degrading the electrical homes of the resulting semiconductor material.
High-purity grades used in electronic devices making normally include over 99.95% SiO TWO, with alkali metal oxides limited to less than 10 ppm and change metals listed below 1 ppm.
Contaminations stem from raw quartz feedstock or processing equipment and are minimized through cautious selection of mineral sources and purification methods like acid leaching and flotation protection.
Additionally, the hydroxyl (OH) content in merged silica influences its thermomechanical actions; high-OH kinds provide much better UV transmission however lower thermal stability, while low-OH variants are chosen for high-temperature applications due to minimized bubble formation.

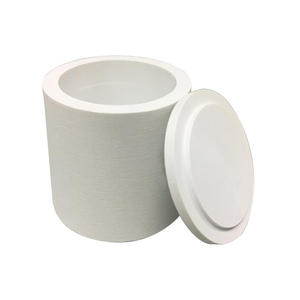

( Quartz Crucibles)
2. Manufacturing Process and Microstructural Design
2.1 Electrofusion and Forming Methods
Quartz crucibles are largely generated using electrofusion, a process in which high-purity quartz powder is fed into a revolving graphite mold and mildew within an electric arc heating system.
An electrical arc produced in between carbon electrodes melts the quartz bits, which strengthen layer by layer to create a seamless, thick crucible shape.
This technique creates a fine-grained, homogeneous microstructure with very little bubbles and striae, vital for consistent warm circulation and mechanical honesty.
Alternative techniques such as plasma fusion and fire combination are used for specialized applications needing ultra-low contamination or specific wall surface density profiles.
After casting, the crucibles go through controlled cooling (annealing) to soothe interior stress and anxieties and avoid spontaneous splitting throughout service.
Surface area ending up, including grinding and brightening, ensures dimensional accuracy and lowers nucleation websites for undesirable crystallization throughout use.
2.2 Crystalline Layer Design and Opacity Control
A defining attribute of modern-day quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the engineered internal layer structure.
During production, the inner surface is often treated to advertise the development of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO TWO– upon first heating.
This cristobalite layer functions as a diffusion barrier, lowering direct communication in between molten silicon and the underlying merged silica, therefore reducing oxygen and metal contamination.
Moreover, the presence of this crystalline phase improves opacity, enhancing infrared radiation absorption and advertising even more uniform temperature distribution within the thaw.
Crucible developers very carefully stabilize the thickness and connection of this layer to stay clear of spalling or breaking because of volume adjustments throughout phase shifts.
3. Useful Performance in High-Temperature Applications
3.1 Duty in Silicon Crystal Development Processes
Quartz crucibles are indispensable in the manufacturing of monocrystalline and multicrystalline silicon, functioning as the key container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into liquified silicon held in a quartz crucible and gradually pulled upward while rotating, enabling single-crystal ingots to create.
Although the crucible does not directly speak to the expanding crystal, interactions between liquified silicon and SiO ₂ walls bring about oxygen dissolution right into the thaw, which can affect provider lifetime and mechanical strength in completed wafers.
In DS processes for photovoltaic-grade silicon, large quartz crucibles allow the regulated cooling of countless kgs of molten silicon into block-shaped ingots.
Here, coverings such as silicon nitride (Si ₃ N ₄) are related to the internal surface to prevent attachment and assist in very easy release of the strengthened silicon block after cooling down.
3.2 Degradation Mechanisms and Life Span Limitations
Regardless of their effectiveness, quartz crucibles degrade during duplicated high-temperature cycles due to several interrelated systems.
Viscous circulation or deformation takes place at long term direct exposure over 1400 ° C, causing wall thinning and loss of geometric stability.
Re-crystallization of fused silica right into cristobalite produces interior anxieties due to volume expansion, possibly triggering cracks or spallation that contaminate the thaw.
Chemical erosion occurs from decrease reactions between molten silicon and SiO ₂: SiO TWO + Si → 2SiO(g), producing unstable silicon monoxide that escapes and compromises the crucible wall.
Bubble development, driven by entraped gases or OH teams, even more jeopardizes architectural toughness and thermal conductivity.
These deterioration paths limit the variety of reuse cycles and demand precise process control to take full advantage of crucible life expectancy and item return.
4. Emerging Technologies and Technological Adaptations
4.1 Coatings and Composite Alterations
To enhance performance and longevity, progressed quartz crucibles integrate functional coatings and composite frameworks.
Silicon-based anti-sticking layers and drugged silica layers improve release features and lower oxygen outgassing throughout melting.
Some producers incorporate zirconia (ZrO ₂) fragments right into the crucible wall to raise mechanical stamina and resistance to devitrification.
Research is continuous right into fully transparent or gradient-structured crucibles developed to optimize induction heat transfer in next-generation solar heating system styles.
4.2 Sustainability and Recycling Obstacles
With increasing need from the semiconductor and photovoltaic or pv industries, lasting use of quartz crucibles has actually become a top priority.
Used crucibles polluted with silicon residue are hard to reuse as a result of cross-contamination threats, causing substantial waste generation.
Efforts focus on establishing recyclable crucible liners, boosted cleansing methods, and closed-loop recycling systems to recuperate high-purity silica for additional applications.
As tool performances require ever-higher material pureness, the duty of quartz crucibles will certainly remain to progress through innovation in materials scientific research and process engineering.
In summary, quartz crucibles represent an essential interface in between raw materials and high-performance electronic products.
Their one-of-a-kind combination of purity, thermal durability, and structural layout enables the fabrication of silicon-based innovations that power modern computer and renewable resource systems.
