1. Product Basics and Crystallographic Feature
1.1 Phase Composition and Polymorphic Behavior

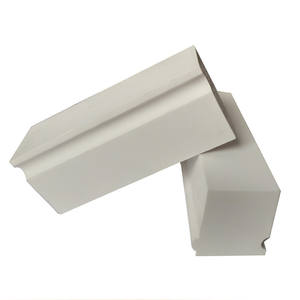

(Alumina Ceramic Blocks)
Alumina (Al ₂ O FOUR), especially in its α-phase form, is among one of the most widely used technological ceramics because of its excellent balance of mechanical toughness, chemical inertness, and thermal security.
While light weight aluminum oxide exists in numerous metastable stages (γ, δ, θ, κ), α-alumina is the thermodynamically steady crystalline framework at heats, characterized by a dense hexagonal close-packed (HCP) arrangement of oxygen ions with aluminum cations occupying two-thirds of the octahedral interstitial sites.
This bought structure, called corundum, provides high lattice energy and solid ionic-covalent bonding, causing a melting point of about 2054 ° C and resistance to phase makeover under severe thermal conditions.
The change from transitional aluminas to α-Al ₂ O three generally happens above 1100 ° C and is accompanied by considerable volume shrinking and loss of surface area, making stage control crucial throughout sintering.
High-purity α-alumina blocks (> 99.5% Al ₂ O FOUR) exhibit remarkable efficiency in serious atmospheres, while lower-grade structures (90– 95%) may consist of secondary phases such as mullite or glazed grain boundary stages for cost-efficient applications.
1.2 Microstructure and Mechanical Integrity
The performance of alumina ceramic blocks is greatly affected by microstructural features including grain size, porosity, and grain boundary communication.
Fine-grained microstructures (grain size < 5 µm) typically give greater flexural strength (approximately 400 MPa) and boosted crack durability compared to coarse-grained counterparts, as smaller grains hamper fracture propagation.
Porosity, even at reduced levels (1– 5%), considerably reduces mechanical toughness and thermal conductivity, requiring complete densification through pressure-assisted sintering methods such as warm pushing or warm isostatic pressing (HIP).
Additives like MgO are usually introduced in trace quantities (≈ 0.1 wt%) to inhibit abnormal grain growth during sintering, ensuring consistent microstructure and dimensional stability.
The resulting ceramic blocks exhibit high firmness (≈ 1800 HV), outstanding wear resistance, and reduced creep prices at raised temperature levels, making them appropriate for load-bearing and rough atmospheres.
2. Manufacturing and Processing Techniques

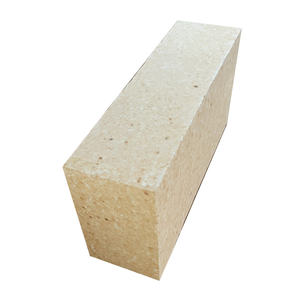

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Approaches
The manufacturing of alumina ceramic blocks starts with high-purity alumina powders originated from calcined bauxite through the Bayer process or synthesized through precipitation or sol-gel courses for greater purity.
Powders are milled to accomplish narrow particle dimension circulation, improving packaging density and sinterability.
Forming right into near-net geometries is achieved with various developing techniques: uniaxial pressing for easy blocks, isostatic pushing for uniform density in complex shapes, extrusion for long sections, and slip casting for detailed or huge parts.
Each technique influences green body thickness and homogeneity, which straight impact last properties after sintering.
For high-performance applications, advanced developing such as tape casting or gel-casting might be used to accomplish remarkable dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperature levels in between 1600 ° C and 1750 ° C makes it possible for diffusion-driven densification, where fragment necks grow and pores shrink, causing a completely thick ceramic body.
Atmosphere control and specific thermal accounts are essential to prevent bloating, bending, or differential shrinking.
Post-sintering procedures consist of ruby grinding, washing, and brightening to attain tight tolerances and smooth surface area coatings needed in securing, gliding, or optical applications.
Laser cutting and waterjet machining allow specific customization of block geometry without generating thermal tension.
Surface area therapies such as alumina finishing or plasma spraying can further boost wear or rust resistance in specialized service problems.
3. Practical Residences and Efficiency Metrics
3.1 Thermal and Electrical Behavior
Alumina ceramic blocks show moderate thermal conductivity (20– 35 W/(m · K)), considerably more than polymers and glasses, enabling efficient warmth dissipation in electronic and thermal management systems.
They keep architectural integrity approximately 1600 ° C in oxidizing environments, with reduced thermal development (≈ 8 ppm/K), adding to superb thermal shock resistance when appropriately designed.
Their high electric resistivity (> 10 ¹⁴ Ω · centimeters) and dielectric stamina (> 15 kV/mm) make them ideal electric insulators in high-voltage atmospheres, consisting of power transmission, switchgear, and vacuum systems.
Dielectric constant (εᵣ ≈ 9– 10) remains steady over a large frequency array, supporting usage in RF and microwave applications.
These residential or commercial properties enable alumina blocks to operate accurately in settings where natural materials would weaken or fail.
3.2 Chemical and Ecological Toughness
Among one of the most beneficial features of alumina blocks is their remarkable resistance to chemical assault.
They are very inert to acids (except hydrofluoric and warm phosphoric acids), antacid (with some solubility in solid caustics at elevated temperatures), and molten salts, making them ideal for chemical handling, semiconductor fabrication, and pollution control equipment.
Their non-wetting behavior with numerous liquified steels and slags enables use in crucibles, thermocouple sheaths, and heating system linings.
Furthermore, alumina is non-toxic, biocompatible, and radiation-resistant, expanding its energy into medical implants, nuclear protecting, and aerospace parts.
Minimal outgassing in vacuum cleaner atmospheres better certifies it for ultra-high vacuum (UHV) systems in research and semiconductor manufacturing.
4. Industrial Applications and Technical Integration
4.1 Architectural and Wear-Resistant Elements
Alumina ceramic blocks work as critical wear elements in sectors ranging from mining to paper production.
They are utilized as linings in chutes, receptacles, and cyclones to resist abrasion from slurries, powders, and granular products, substantially extending life span compared to steel.
In mechanical seals and bearings, alumina obstructs provide reduced friction, high solidity, and deterioration resistance, reducing maintenance and downtime.
Custom-shaped blocks are integrated right into reducing tools, passes away, and nozzles where dimensional security and side retention are paramount.
Their lightweight nature (density ≈ 3.9 g/cm FIVE) also contributes to energy savings in moving parts.
4.2 Advanced Design and Arising Utilizes
Past typical functions, alumina blocks are increasingly used in advanced technological systems.
In electronics, they work as insulating substratums, warm sinks, and laser dental caries parts because of their thermal and dielectric residential properties.
In energy systems, they act as solid oxide fuel cell (SOFC) components, battery separators, and blend reactor plasma-facing products.
Additive production of alumina by means of binder jetting or stereolithography is arising, allowing complex geometries previously unattainable with standard creating.
Crossbreed frameworks integrating alumina with metals or polymers via brazing or co-firing are being established for multifunctional systems in aerospace and defense.
As product science advances, alumina ceramic blocks remain to evolve from passive architectural components into active elements in high-performance, sustainable engineering solutions.
In recap, alumina ceramic blocks stand for a foundational class of innovative ceramics, combining durable mechanical efficiency with phenomenal chemical and thermal stability.
Their adaptability across commercial, electronic, and clinical domain names underscores their enduring value in contemporary engineering and modern technology development.
