1. Product Attributes and Architectural Design
1.1 Composition and Crystalline Phases of Alumina

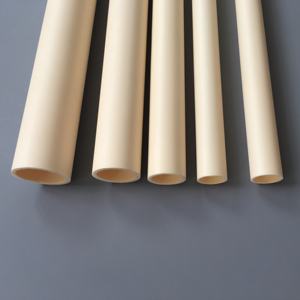

( Alumina Ceramic Tubes)
Alumina (Al ₂ O ₃) ceramic tubes are largely made from high-purity light weight aluminum oxide, with pureness degrees typically ranging from 90% to 99.8%, relying on the desired application.
The dominant crystalline stage in totally thick, high-temperature sintered tubes is α-alumina (diamond), which displays a trigonal crystal framework and phenomenal thermodynamic security.
This phase shift from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs over 1100 ° C and results in a thick, interlocking microstructure that gives outstanding mechanical toughness and chemical resistance.
Greater pureness grades (≥ 99.5%) take full advantage of solidity, put on resistance, and dielectric efficiency, while lower-purity solutions may include second phases like mullite or glassy grain limit phases to minimize price or tailor thermal expansion.
The capability to control grain size, porosity, and phase structure during handling allows engineers to adjust alumina tubes for certain useful needs across diverse commercial domains.
1.2 Mechanical, Thermal, and Electric Residence
Alumina ceramic tubes show a distinct combination of physical residential properties that make them vital in demanding design settings.
With a Vickers solidity going beyond 1500 HV, they are very immune to abrasion and erosion, outperforming most steels and polymers in wear-prone systems.
Their compressive toughness can reach 2000 MPa, enabling architectural usage under high mechanical lots, while flexural toughness typically varies from 300 to 500 MPa, depending on density and surface finish.
Thermally, alumina maintains stability up to 1700 ° C in oxidizing atmospheres, with a reduced coefficient of thermal expansion (~ 8 ppm/K), contributing to superb thermal shock resistance when effectively created.
Although its thermal conductivity (~ 30 W/(m · K)) is modest contrasted to steels or aluminum nitride, it suffices for several high-temperature applications where electrical insulation and structural integrity are prioritized.
Electrically, alumina is an exceptional insulator with volume resistivity > 10 ¹⁴ Ω · cm and high dielectric stamina (> 15 kV/mm), making it perfect for electrical feedthroughs, sensing unit real estates, and high-voltage insulation.

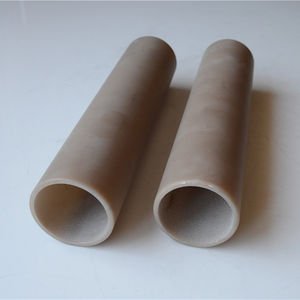

( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Forming and Developing Techniques
The production of alumina ceramic tubes includes sophisticated forming methods tailored to accomplish accurate dimensions, wall thickness harmony, and surface high quality.
Common techniques include extrusion, isostatic pressing, and slip casting, each fit to various size ranges and performance demands.
Extrusion is extensively used for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is forced via a die and cut to size before drying out and sintering.
For high-precision or thin-walled tubes, cold isostatic pushing (CIP) uses uniform pressure from all directions to small environment-friendly bodies, reducing distortion and boosting density homogeneity.
Slide spreading, involving the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is suitable for complex or large-diameter geometries with variable wall surface thickness.
After forming, tubes undergo cautious drying to prevent cracking, followed by binder fatigue and high-temperature sintering (1500– 1650 ° C )to accomplish complete densification and dimensional security.
2.2 Finishing and Quality Control
Post-sintering operations such as centerless grinding, splashing, and polishing are used to accomplish tight tolerances, smooth surface finishes, and specific inner and outer diameters.
Resistances as tight as ± 0.01 mm are possible for crucial applications in semiconductor processing or analytical instrumentation.
Surface roughness can be decreased to Ra < 0.1 µm, reducing fragment capturing and improving compatibility with ultra-high vacuum cleaner (UHV) or cleanroom settings.
Non-destructive testing approaches– consisting of ultrasonic inspection, X-ray radiography, and dye penetrant screening– make sure structural integrity and absence of fractures or spaces.
Dimensional assessment using coordinate gauging equipments (CMM) or laser scanning verifies conformity with design specs, specifically for custom or high-volume manufacturing runs.
3. Useful Efficiency in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
One of one of the most compelling advantages of alumina ceramic tubes is their ability to stand up to extreme thermal and chemical conditions where steels and polymers fall short.
They continue to be dimensionally steady and mechanically durable in constant service at temperatures over 1500 ° C, making them ideal for furnace linings, thermocouple security sheaths, and radiant heater tubes.
Their inertness to thaw steels (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and numerous acids (except hydrofluoric and hot phosphoric acid) allows use in metallurgical and chemical handling equipment.
In oxidizing and lowering atmospheres, alumina does not degrade or militarize unwanted responses, maintaining process purity in semiconductor and glass production.
This chemical inertness also protects against contamination in high-purity fluid managing systems, including those made use of in pharmaceutical and food handling industries.
3.2 Electrical Insulation and Plasma Resistance
In electric and plasma atmospheres, alumina tubes function as insulating obstacles that preserve circuit honesty under high voltage and elevated temperature level.
They are used in high-intensity discharge (HID) lights, where they contain ionized gases at temperature levels surpassing 1000 ° C while standing up to electrical possibilities of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes serve as dielectric home windows or gas distribution elements, standing up to ion barrage and thermal biking without splitting or outgassing.
Their low dielectric loss and high arc resistance stop electric monitoring and failure, ensuring long service life in switchgear and power transmission parts.
These residential or commercial properties are vital in preserving process security and tools dependability in advanced production and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Commercial Processing Systems
Alumina ceramic tubes are indispensable to a vast array of commercial processes that require toughness under extreme conditions.
In thermal handling, they act as safety sheaths for thermocouples and heating elements in kilns, heaters, and heat treatment equipment, protecting delicate parts from destructive ambiences and mechanical wear.
In liquid handling, they move hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock permits fast heating and cooling cycles without failure, a crucial benefit in cyclic industrial procedures.
In glass production, alumina tubes direct molten glass flows and assistance forming devices, withstanding disintegration from viscous, high-temperature melts.
4.2 Advanced Technologies and Future Combination
Beyond conventional commercial usages, alumina tubes are finding brand-new functions in innovative modern technologies.
In semiconductor fabrication, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) activators and ion implantation systems, where fragment generation and metal contamination have to be decreased.
In medical devices, biocompatible alumina tubes function as insulating elements in medical devices, dental implants, and analysis sensing units.
Research is checking out functionalized alumina tubes with embedded sensors or conductive traces for clever structural monitoring in aerospace and energy systems.
Additive production (3D printing) of alumina is becoming an approach to generate complex tube geometries with inner networks or graded make-ups, enabling next-generation warmth exchangers and microreactors.
As markets push toward greater efficiency, cleaner procedures, and better integrity, alumina ceramic tubes remain to evolve as allowing parts in the framework of modern innovation.
In summary, alumina ceramic tubes represent a fully grown yet dynamically progressing class of engineered products, integrating remarkable thermal, mechanical, and electrical efficiency in a solitary inorganic channel.
Their versatility throughout severe atmospheres guarantees their ongoing importance in both developed commercial systems and arising state-of-the-art applications.
