Check out the detailed guide to oil immersed transformers, including oil immersed power transformers and oil submersed distribution transformers. Discover their functioning principles, kinds, benefits, and advancing role in wise grids and renewable energy.
1. Introduction to Oil Immersed Transformers
In the complex web of our contemporary electrical grid, transformers play a vital role, silently tipping voltage up and down to make certain electrical energy can be transmitted successfully over fars away and distributed securely to our homes and markets. Amongst the various kinds readily available, the oil submersed transformer stands as a testament to tried and tested reliability and sturdiness. For years, these workhorses have formed the foundation of power systems worldwide.
An oil immersed transformer is a type of electric transformer that uses a specific insulating oil as both a coolant and a shielding medium. This style is mostly made use of for medium to high-power applications, making it a keystone of electric framework. This guide delves deep into the globe of oil submersed power transformers and oil immersed distribution transformers, exploring their modern technology, applications, and their developing duty in an era of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer contains a magnetic core and copper or light weight aluminum windings housed inside a sealed storage tank full of shielding oil. The key function of the oil is twofold:
1. Insulation: The oil has high dielectric strength, efficiently protecting the high-voltage windings from the transformer’s core and based container. This stops brief circuits and electric malfunctions.
2. Cooling: As the transformer runs, the windings produce significant warm as a result of I ² R losses. The distributing oil absorbs this heat, convects it to the transformer’s tank walls, and dissipates it into the bordering air. Larger systems commonly include radiators or fins to raise the surface for a lot more reliable cooling.
This dual-purpose use of oil makes the oil submersed transformer extremely effective and durable, with the ability of dealing with high tons and holding up against transient overloads better than several dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these units are oil immersed transformers, they serve distinctive functions within the power system network. Comprehending the distinction is important.
An oil submersed power transformer is a heavyweight, commonly used in transmission networks at generating terminals and major substations. Their main duty is to “step-up” the voltage produced at the nuclear power plant to very high degrees (e.g., 138 kV, 230 kV, 500 kV and over) for reliable long-distance transmission, and to “step-down” the voltage at receiving substations for additional circulation. They are defined by their really high power rankings (usually going beyond 100 MVA), complicated construction, and on-load faucet changers for voltage policy.
An oil immersed circulation transformer, on the other hand, executes the final action in the power shipment chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the low voltages (e.g., 400/230 V) used by business and property customers. You generally find them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have reduced power scores (generally up to 2,500 kVA), and are made for optimal performance at reduced, much more consistent loads.

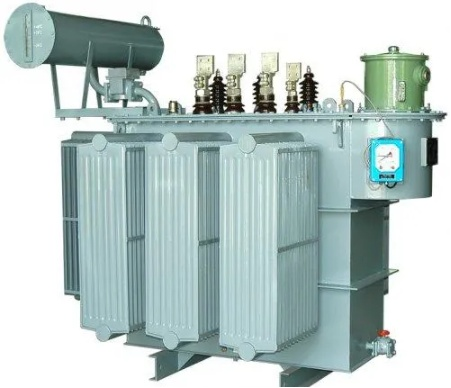

(Oil immersed power transformer)
2. Trick Advantages of Oil Submersed Transformers
The enduring popularity of the oil immersed transformer is not unexpected. It offers a collection of engaging advantages that make it the preferred choice for many demanding applications.
2.1 Superior Cooling and Overload Ability
The exceptional thermal ability of oil compared to air permits an oil submersed power transformer to take care of and dissipate heat a lot more efficiently. This converts to a higher overload capability. During periods of optimal electricity need, an oil submersed transformer can deal with short-term overloads without sustaining damage, an important function for maintaining grid security. The oil’s flow ensures even heat distribution, avoiding localized locations that can break down insulation gradually.
2.2 Improved Insulation and Long Life Span
The combination of high-grade mineral oil and diligently impregnated paper insulation creates a dielectric system of exceptional stamina. This durable insulation system safeguards the transformer from voltage rises and transients, adding to a functional life expectancy that can include 30-40 years or even more with appropriate upkeep. The sealed tank additionally protects the interior parts from wetness, dust, and other climatic pollutants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil immersed transformer is typically the most cost-effective option. The products made use of– mineral oil, steel container, and copper/aluminum windings– offer a desirable balance of performance and expense. The high performance of these transformers, specifically at their ranked load, leads to reduced power losses over their life time, bring about significant expense savings for utility firms and large commercial customers.
3. Warm Subjects and Future Trends
The world of oil immersed transformers is not static. It is continuously evolving to fulfill new obstacles and incorporate with modern technologies.
3.1 Biodegradable and Fireproof Oils
Environmental and safety and security issues are driving a substantial change away from standard mineral oil. The marketplace is rapidly embracing oil immersed transformers loaded with eco-friendly esters (artificial or all-natural). These oils provide a greater fire point (making them K-class fire-resistant), are less harmful, and are conveniently eco-friendly, significantly minimizing the ecological impact in situation of a leak. This pattern is making oil submersed distribution transformers safer for installment in city areas and environmentally sensitive places.
3.2 Integration with Smart Grids and IoT
The contemporary oil immersed power transformer is becoming a smart node in the smart grid. Sensing units are being incorporated to check essential specifications in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Detecting fault gases created within the oil to predict incipient mistakes.
Temperature Level Tracking: Tracking top-oil and hotspot temperature levels.
Tons and Power Quality Monitoring.
This information, sent via IoT (Web of Things) systems, allows anticipating upkeep, avoids unplanned blackouts, and optimizes transformer use and lifespan.
3.3 Supporting the Renewable Resource Change
The global push for renewables is producing brand-new demand for oil immersed transformers. Large solar ranches and wind power installations call for robust oil immersed power transformers to step up the created voltage to transmission levels. Additionally, the periodic nature of renewables areas greater tension on grid elements, and the tried and tested integrity and overload capacity of oil immersed transformers make them perfect for this essential function.
4. Option and Upkeep Finest Practices
Selecting the best transformer and preserving it correctly is essential to a dependable power system.
4.1 Just how to Select the Right Oil Immersed Transformer
Selecting between an oil submersed power transformer and an oil immersed circulation transformer depends on the application. Key considerations consist of:
1. Voltage Level and kVA Rating: Match the transformer’s specifications to your system’s needs.
2. Application: Transmission substation, industrial plant, or business distribution.
3. Area: Indoor vs. outside, ecological conditions, and fire safety and security policies (which may affect the option of protecting oil).
4. Efficiency Criteria: Adhere to regional effectiveness criteria like DOE (U.S.A.) or EU CoC (Europe).
5. Budget: Consider both the preliminary resources expense and the complete price of ownership, including losses.

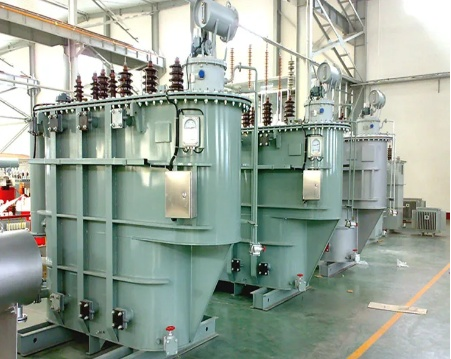

(Oil immersed distribution transformer)
4.2 Essential Upkeep for Durability
Positive maintenance is essential for any kind of oil immersed transformer. An extensive program should consist of:
1. Routine Oil Tasting and Screening: Regular DGA and screening of dielectric strength and dampness web content are the most reliable means to analyze the wellness of the transformer.
2. Bushing and Insulation Inspection: Visual checks for fractures, contamination, or leaks.
3. Tap Changer Upkeep: Normal examination and servicing of on-load or off-load faucet changers.
4. Maintain it Tidy and Dry: Making sure the storage tank outside, radiators, and breathers are tidy and practical.
The oil submersed transformer, in its duties as both a high-capacity oil submersed power transformer and an ubiquitous oil immersed circulation transformer, remains an irreplaceable element of our global power framework. Its tested design, coupled with continuous developments in protecting liquids and digital surveillance, guarantees it will certainly remain to be a reliable, effective, and smart solution for powering our world for decades to come. As we build the grids of the future, incorporating more renewables and electronic knowledge, the robust and versatile oil submersed transformer will undoubtedly be at the heart of it.
