1. Product Basics and Structural Qualities of Alumina Ceramics
1.1 Make-up, Crystallography, and Phase Stability

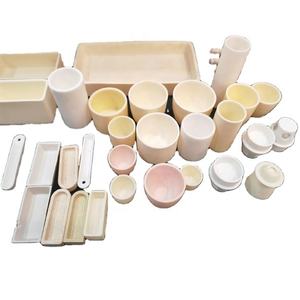

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels made largely from light weight aluminum oxide (Al ₂ O THREE), one of one of the most commonly used advanced porcelains as a result of its remarkable mix of thermal, mechanical, and chemical stability.
The dominant crystalline stage in these crucibles is alpha-alumina (α-Al ₂ O TWO), which comes from the diamond framework– a hexagonal close-packed setup of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent aluminum ions.
This thick atomic packaging results in solid ionic and covalent bonding, giving high melting point (2072 ° C), outstanding hardness (9 on the Mohs scale), and resistance to slip and deformation at elevated temperatures.
While pure alumina is optimal for a lot of applications, trace dopants such as magnesium oxide (MgO) are often added during sintering to hinder grain development and enhance microstructural uniformity, therefore improving mechanical stamina and thermal shock resistance.
The stage purity of α-Al two O six is vital; transitional alumina phases (e.g., γ, δ, θ) that develop at lower temperatures are metastable and undertake quantity modifications upon conversion to alpha stage, potentially causing cracking or failure under thermal biking.
1.2 Microstructure and Porosity Control in Crucible Manufacture
The efficiency of an alumina crucible is profoundly influenced by its microstructure, which is established throughout powder processing, developing, and sintering stages.
High-purity alumina powders (commonly 99.5% to 99.99% Al ₂ O SIX) are formed into crucible types utilizing methods such as uniaxial pushing, isostatic pushing, or slip spreading, complied with by sintering at temperature levels in between 1500 ° C and 1700 ° C.
During sintering, diffusion mechanisms drive fragment coalescence, decreasing porosity and boosting density– preferably attaining > 99% academic density to minimize permeability and chemical seepage.
Fine-grained microstructures improve mechanical toughness and resistance to thermal stress and anxiety, while regulated porosity (in some customized qualities) can enhance thermal shock tolerance by dissipating pressure energy.
Surface surface is also crucial: a smooth interior surface reduces nucleation sites for undesirable reactions and helps with simple removal of strengthened materials after handling.
Crucible geometry– consisting of wall thickness, curvature, and base layout– is optimized to stabilize heat transfer effectiveness, architectural honesty, and resistance to thermal gradients throughout quick heating or cooling.

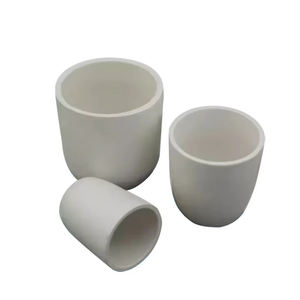

( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Efficiency and Thermal Shock Habits
Alumina crucibles are consistently employed in atmospheres going beyond 1600 ° C, making them essential in high-temperature materials research, steel refining, and crystal development procedures.
They show low thermal conductivity (~ 30 W/m · K), which, while limiting heat transfer rates, likewise provides a level of thermal insulation and aids maintain temperature slopes necessary for directional solidification or area melting.
A key difficulty is thermal shock resistance– the capacity to endure unexpected temperature adjustments without breaking.
Although alumina has a fairly reduced coefficient of thermal development (~ 8 × 10 ⁻⁶/ K), its high tightness and brittleness make it at risk to fracture when subjected to steep thermal slopes, particularly throughout fast heating or quenching.
To alleviate this, individuals are encouraged to adhere to regulated ramping protocols, preheat crucibles progressively, and avoid straight exposure to open fires or cool surfaces.
Advanced grades incorporate zirconia (ZrO ₂) toughening or rated compositions to enhance fracture resistance with systems such as phase makeover strengthening or recurring compressive stress generation.
2.2 Chemical Inertness and Compatibility with Reactive Melts
One of the defining benefits of alumina crucibles is their chemical inertness towards a wide range of molten steels, oxides, and salts.
They are extremely immune to standard slags, molten glasses, and several metal alloys, consisting of iron, nickel, cobalt, and their oxides, that makes them appropriate for use in metallurgical analysis, thermogravimetric experiments, and ceramic sintering.
However, they are not universally inert: alumina reacts with strongly acidic changes such as phosphoric acid or boron trioxide at high temperatures, and it can be worn away by molten alkalis like salt hydroxide or potassium carbonate.
Particularly important is their interaction with light weight aluminum steel and aluminum-rich alloys, which can lower Al two O six through the response: 2Al + Al ₂ O FIVE → 3Al ₂ O (suboxide), bring about matching and eventual failing.
In a similar way, titanium, zirconium, and rare-earth metals exhibit high sensitivity with alumina, forming aluminides or intricate oxides that endanger crucible honesty and contaminate the thaw.
For such applications, alternate crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are chosen.
3. Applications in Scientific Research and Industrial Handling
3.1 Duty in Products Synthesis and Crystal Development
Alumina crucibles are central to many high-temperature synthesis routes, including solid-state reactions, change development, and melt processing of practical porcelains and intermetallics.
In solid-state chemistry, they act as inert containers for calcining powders, synthesizing phosphors, or preparing precursor products for lithium-ion battery cathodes.
For crystal development techniques such as the Czochralski or Bridgman methods, alumina crucibles are utilized to have molten oxides like yttrium light weight aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness makes sure minimal contamination of the expanding crystal, while their dimensional stability supports reproducible growth conditions over extended periods.
In flux growth, where solitary crystals are expanded from a high-temperature solvent, alumina crucibles should stand up to dissolution by the flux medium– frequently borates or molybdates– calling for mindful selection of crucible quality and processing parameters.
3.2 Usage in Analytical Chemistry and Industrial Melting Workflow
In logical research laboratories, alumina crucibles are typical equipment in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where accurate mass measurements are made under regulated atmospheres and temperature ramps.
Their non-magnetic nature, high thermal security, and compatibility with inert and oxidizing environments make them suitable for such accuracy measurements.
In industrial settings, alumina crucibles are utilized in induction and resistance furnaces for melting precious metals, alloying, and casting operations, especially in jewelry, dental, and aerospace part production.
They are additionally made use of in the production of technical ceramics, where raw powders are sintered or hot-pressed within alumina setters and crucibles to avoid contamination and make sure consistent home heating.
4. Limitations, Handling Practices, and Future Product Enhancements
4.1 Operational Restraints and Finest Practices for Durability
Regardless of their toughness, alumina crucibles have well-defined operational limits that should be valued to make certain safety and security and efficiency.
Thermal shock continues to be one of the most common cause of failing; as a result, gradual home heating and cooling cycles are vital, particularly when transitioning with the 400– 600 ° C array where recurring stress and anxieties can collect.
Mechanical damage from mishandling, thermal cycling, or contact with tough products can initiate microcracks that propagate under stress and anxiety.
Cleaning ought to be done thoroughly– staying clear of thermal quenching or abrasive techniques– and used crucibles ought to be checked for indicators of spalling, discoloration, or contortion before reuse.
Cross-contamination is another problem: crucibles used for reactive or poisonous products should not be repurposed for high-purity synthesis without comprehensive cleansing or ought to be thrown out.
4.2 Emerging Trends in Compound and Coated Alumina Solutions
To extend the abilities of conventional alumina crucibles, scientists are establishing composite and functionally rated materials.
Examples consist of alumina-zirconia (Al ₂ O FOUR-ZrO TWO) compounds that enhance toughness and thermal shock resistance, or alumina-silicon carbide (Al ₂ O FIVE-SiC) versions that boost thermal conductivity for more uniform home heating.
Surface area layers with rare-earth oxides (e.g., yttria or scandia) are being discovered to produce a diffusion barrier versus responsive metals, consequently increasing the range of compatible thaws.
In addition, additive manufacturing of alumina components is arising, allowing personalized crucible geometries with interior networks for temperature level tracking or gas flow, opening up brand-new possibilities in process control and reactor layout.
In conclusion, alumina crucibles continue to be a cornerstone of high-temperature technology, valued for their integrity, pureness, and adaptability across scientific and commercial domains.
Their proceeded evolution with microstructural design and crossbreed material layout makes certain that they will continue to be vital devices in the advancement of products science, energy innovations, and advanced production.
