1. Material Basics and Crystal Chemistry
1.1 Make-up and Polymorphic Structure
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its extraordinary solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks differing in piling sequences– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technically appropriate.
The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) cause a high melting factor (~ 2700 ° C), reduced thermal development (~ 4.0 × 10 ⁻⁶/ K), and superb resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC lacks a native glassy stage, contributing to its security in oxidizing and corrosive environments up to 1600 ° C.
Its wide bandgap (2.3– 3.3 eV, depending on polytype) additionally grants it with semiconductor properties, enabling double use in architectural and electronic applications.
1.2 Sintering Obstacles and Densification Approaches
Pure SiC is incredibly difficult to densify as a result of its covalent bonding and reduced self-diffusion coefficients, requiring using sintering aids or sophisticated handling methods.
Reaction-bonded SiC (RB-SiC) is created by infiltrating porous carbon preforms with liquified silicon, creating SiC in situ; this technique returns near-net-shape elements with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) utilizes boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert ambience, accomplishing > 99% theoretical thickness and remarkable mechanical residential properties.
Liquid-phase sintered SiC (LPS-SiC) uses oxide ingredients such as Al ₂ O TWO– Y ₂ O SIX, creating a short-term liquid that boosts diffusion however may decrease high-temperature toughness because of grain-boundary phases.
Warm pressing and spark plasma sintering (SPS) provide fast, pressure-assisted densification with fine microstructures, ideal for high-performance parts needing minimal grain growth.
2. Mechanical and Thermal Performance Characteristics
2.1 Stamina, Solidity, and Use Resistance
Silicon carbide porcelains display Vickers firmness values of 25– 30 Grade point average, 2nd only to ruby and cubic boron nitride amongst design products.
Their flexural strength generally ranges from 300 to 600 MPa, with crack strength (K_IC) of 3– 5 MPa · m 1ST/ ²– moderate for porcelains yet improved via microstructural engineering such as whisker or fiber reinforcement.
The mix of high solidity and elastic modulus (~ 410 Grade point average) makes SiC incredibly resistant to rough and abrasive wear, exceeding tungsten carbide and solidified steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC components show life span several times longer than standard alternatives.
Its low thickness (~ 3.1 g/cm FIVE) further contributes to use resistance by lowering inertial forces in high-speed turning parts.
2.2 Thermal Conductivity and Security
Among SiC’s most distinct functions is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline kinds, and as much as 490 W/(m · K) for single-crystal 4H-SiC– surpassing most steels other than copper and light weight aluminum.
This property makes it possible for reliable warmth dissipation in high-power electronic substratums, brake discs, and warm exchanger parts.
Coupled with low thermal expansion, SiC shows impressive thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high values suggest strength to fast temperature level changes.

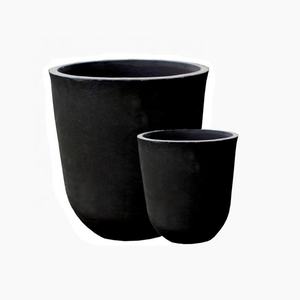

For example, SiC crucibles can be warmed from area temperature to 1400 ° C in minutes without splitting, an accomplishment unattainable for alumina or zirconia in similar conditions.
Furthermore, SiC preserves strength as much as 1400 ° C in inert atmospheres, making it excellent for heating system components, kiln furniture, and aerospace components subjected to extreme thermal cycles.
3. Chemical Inertness and Deterioration Resistance
3.1 Behavior in Oxidizing and Lowering Atmospheres
At temperature levels below 800 ° C, SiC is highly steady in both oxidizing and reducing atmospheres.
Over 800 ° C in air, a safety silica (SiO ₂) layer types on the surface through oxidation (SiC + 3/2 O TWO → SiO TWO + CARBON MONOXIDE), which passivates the product and slows down more deterioration.
However, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)₄, causing increased economic downturn– an essential factor to consider in generator and burning applications.
In reducing ambiences or inert gases, SiC continues to be stable up to its disintegration temperature (~ 2700 ° C), with no stage modifications or strength loss.
This security makes it appropriate for liquified metal handling, such as light weight aluminum or zinc crucibles, where it stands up to moistening and chemical attack much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is essentially inert to all acids except hydrofluoric acid (HF) and strong oxidizing acid blends (e.g., HF– HNO FIVE).
It reveals superb resistance to alkalis up to 800 ° C, though long term exposure to molten NaOH or KOH can trigger surface area etching by means of formation of soluble silicates.
In liquified salt settings– such as those in focused solar energy (CSP) or nuclear reactors– SiC demonstrates exceptional deterioration resistance compared to nickel-based superalloys.
This chemical toughness underpins its use in chemical process equipment, consisting of valves, liners, and warm exchanger tubes managing aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Emerging Frontiers
4.1 Established Utilizes in Energy, Defense, and Manufacturing
Silicon carbide porcelains are essential to many high-value industrial systems.
In the power field, they function as wear-resistant linings in coal gasifiers, parts in nuclear gas cladding (SiC/SiC composites), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Protection applications include ballistic shield plates, where SiC’s high hardness-to-density proportion supplies remarkable protection versus high-velocity projectiles contrasted to alumina or boron carbide at reduced price.
In manufacturing, SiC is utilized for precision bearings, semiconductor wafer dealing with components, and unpleasant blasting nozzles because of its dimensional stability and pureness.
Its usage in electrical automobile (EV) inverters as a semiconductor substratum is swiftly growing, driven by effectiveness gains from wide-bandgap electronic devices.
4.2 Next-Generation Developments and Sustainability
Recurring study concentrates on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which exhibit pseudo-ductile actions, enhanced durability, and preserved strength over 1200 ° C– optimal for jet engines and hypersonic vehicle leading edges.
Additive production of SiC by means of binder jetting or stereolithography is progressing, enabling complicated geometries formerly unattainable through conventional creating methods.
From a sustainability viewpoint, SiC’s longevity lowers replacement regularity and lifecycle discharges in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being created via thermal and chemical healing processes to reclaim high-purity SiC powder.
As industries press toward higher performance, electrification, and extreme-environment procedure, silicon carbide-based ceramics will stay at the leading edge of sophisticated products design, linking the gap in between architectural resilience and practical versatility.
