1. Fundamental Science and Nanoarchitectural Design of Aerogel Coatings
1.1 The Origin and Definition of Aerogel-Based Coatings

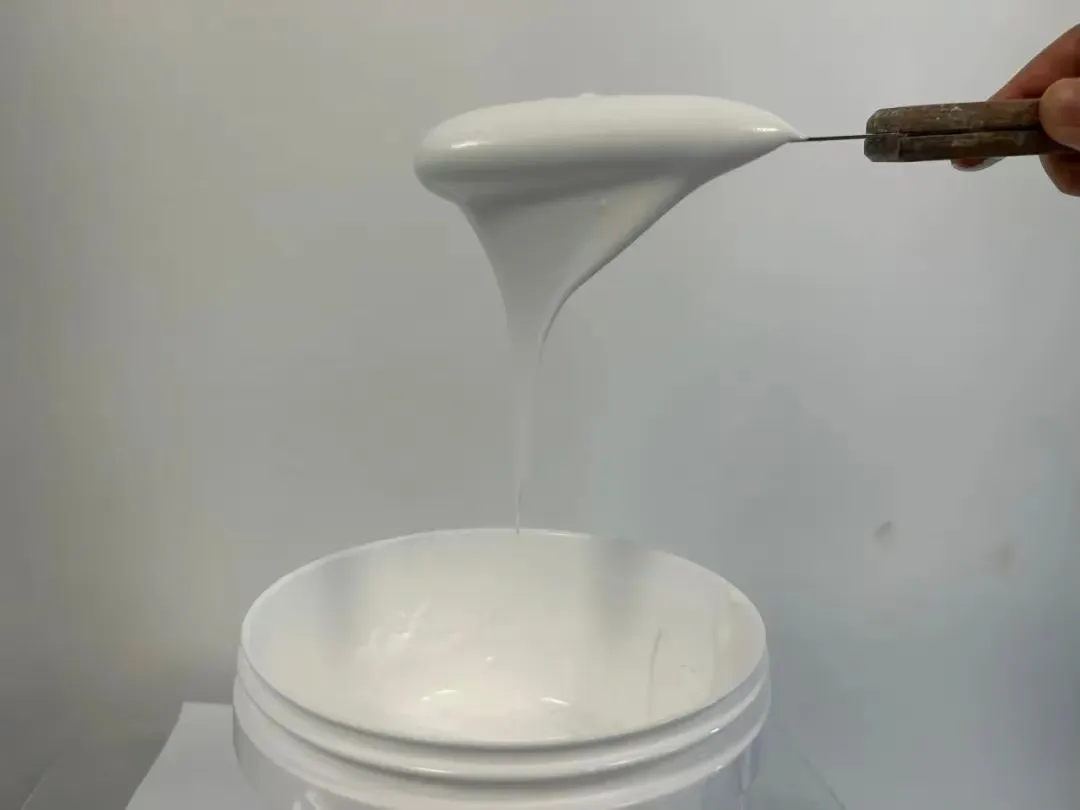

(Aerogel Coatings)
Aerogel coatings stand for a transformative class of functional materials stemmed from the broader household of aerogels– ultra-porous, low-density solids renowned for their remarkable thermal insulation, high surface, and nanoscale architectural hierarchy.
Unlike conventional monolithic aerogels, which are usually vulnerable and tough to integrate into complicated geometries, aerogel coverings are used as slim movies or surface area layers on substrates such as steels, polymers, fabrics, or building and construction materials.
These layers maintain the core residential or commercial properties of mass aerogels– particularly their nanoscale porosity and low thermal conductivity– while providing enhanced mechanical sturdiness, flexibility, and simplicity of application through strategies like splashing, dip-coating, or roll-to-roll processing.
The key constituent of a lot of aerogel finishings is silica (SiO TWO), although hybrid systems integrating polymers, carbon, or ceramic precursors are significantly used to tailor functionality.
The specifying function of aerogel finishings is their nanostructured network, usually made up of interconnected nanoparticles creating pores with diameters below 100 nanometers– smaller sized than the mean complimentary path of air molecules.
This building constraint effectively reduces aeriform transmission and convective warm transfer, making aerogel finishes amongst the most effective thermal insulators known.
1.2 Synthesis Pathways and Drying Out Mechanisms
The fabrication of aerogel layers starts with the formation of a damp gel network with sol-gel chemistry, where molecular precursors such as tetraethyl orthosilicate (TEOS) undergo hydrolysis and condensation responses in a fluid tool to create a three-dimensional silica network.
This process can be fine-tuned to control pore size, particle morphology, and cross-linking thickness by readjusting criteria such as pH, water-to-precursor proportion, and stimulant type.
When the gel network is formed within a thin film arrangement on a substratum, the important difficulty lies in eliminating the pore fluid without falling down the fragile nanostructure– an issue historically attended to with supercritical drying.
In supercritical drying out, the solvent (typically alcohol or CO TWO) is warmed and pressurized beyond its critical point, removing the liquid-vapor interface and stopping capillary stress-induced shrinking.
While reliable, this method is energy-intensive and much less appropriate for massive or in-situ covering applications.
( Aerogel Coatings)
To get rid of these constraints, innovations in ambient stress drying (APD) have allowed the production of durable aerogel coatings without needing high-pressure tools.
This is attained through surface area adjustment of the silica network making use of silylating agents (e.g., trimethylchlorosilane), which replace surface hydroxyl groups with hydrophobic moieties, decreasing capillary forces during dissipation.
The resulting coatings keep porosities surpassing 90% and thickness as low as 0.1– 0.3 g/cm SIX, preserving their insulative efficiency while enabling scalable manufacturing.
2. Thermal and Mechanical Efficiency Characteristics
2.1 Phenomenal Thermal Insulation and Warmth Transfer Suppression
The most popular building of aerogel coatings is their ultra-low thermal conductivity, typically varying from 0.012 to 0.020 W/m · K at ambient problems– equivalent to still air and substantially less than standard insulation materials like polyurethane (0.025– 0.030 W/m · K )or mineral wool (0.035– 0.040 W/m · K).
This performance originates from the set of three of warm transfer suppression devices integral in the nanostructure: marginal strong transmission as a result of the thin network of silica tendons, minimal aeriform transmission because of Knudsen diffusion in sub-100 nm pores, and decreased radiative transfer with doping or pigment enhancement.
In sensible applications, also thin layers (1– 5 mm) of aerogel coating can attain thermal resistance (R-value) comparable to much thicker standard insulation, making it possible for space-constrained designs in aerospace, developing envelopes, and mobile devices.
Furthermore, aerogel finishings exhibit secure performance throughout a vast temperature level variety, from cryogenic problems (-200 ° C )to modest heats (approximately 600 ° C for pure silica systems), making them suitable for severe settings.
Their low emissivity and solar reflectance can be further boosted with the consolidation of infrared-reflective pigments or multilayer architectures, improving radiative securing in solar-exposed applications.
2.2 Mechanical Resilience and Substrate Compatibility
In spite of their extreme porosity, modern-day aerogel coverings show unusual mechanical effectiveness, especially when reinforced with polymer binders or nanofibers.
Crossbreed organic-inorganic formulations, such as those integrating silica aerogels with acrylics, epoxies, or polysiloxanes, enhance flexibility, attachment, and influence resistance, enabling the finishing to hold up against vibration, thermal biking, and small abrasion.
These hybrid systems keep great insulation performance while achieving prolongation at break values up to 5– 10%, stopping fracturing under strain.
Adhesion to varied substrates– steel, aluminum, concrete, glass, and versatile foils– is attained through surface area priming, chemical combining agents, or in-situ bonding during curing.
In addition, aerogel coverings can be engineered to be hydrophobic or superhydrophobic, repelling water and avoiding dampness access that might degrade insulation efficiency or promote deterioration.
This mix of mechanical toughness and environmental resistance improves long life in outside, aquatic, and commercial setups.
3. Practical Convenience and Multifunctional Integration
3.1 Acoustic Damping and Noise Insulation Capabilities
Past thermal management, aerogel finishes demonstrate considerable possibility in acoustic insulation as a result of their open-pore nanostructure, which dissipates audio power with viscous losses and inner friction.
The tortuous nanopore network restrains the breeding of sound waves, specifically in the mid-to-high regularity variety, making aerogel layers efficient in minimizing noise in aerospace cabins, automobile panels, and building wall surfaces.
When incorporated with viscoelastic layers or micro-perforated strugglings with, aerogel-based systems can achieve broadband audio absorption with very little included weight– an essential advantage in weight-sensitive applications.
This multifunctionality makes it possible for the design of integrated thermal-acoustic barriers, reducing the requirement for multiple separate layers in complicated settings up.
3.2 Fire Resistance and Smoke Reductions Properties
Aerogel finishes are inherently non-combustible, as silica-based systems do not contribute fuel to a fire and can endure temperature levels well above the ignition points of typical building and insulation products.
When related to flammable substratums such as timber, polymers, or textiles, aerogel finishes work as a thermal barrier, delaying heat transfer and pyrolysis, thus boosting fire resistance and raising retreat time.
Some solutions integrate intumescent ingredients or flame-retardant dopants (e.g., phosphorus or boron compounds) that broaden upon home heating, developing a safety char layer that additionally insulates the underlying product.
Furthermore, unlike lots of polymer-based insulations, aerogel coatings create marginal smoke and no toxic volatiles when revealed to high warm, improving safety and security in encased atmospheres such as tunnels, ships, and high-rise buildings.
4. Industrial and Arising Applications Across Sectors
4.1 Energy Performance in Building and Industrial Solution
Aerogel finishings are revolutionizing easy thermal management in style and framework.
Applied to home windows, wall surfaces, and roofs, they minimize heating and cooling down tons by reducing conductive and radiative heat exchange, contributing to net-zero power structure layouts.
Clear aerogel finishings, specifically, permit daylight transmission while blocking thermal gain, making them suitable for skylights and drape walls.
In commercial piping and storage tanks, aerogel-coated insulation decreases power loss in heavy steam, cryogenic, and process fluid systems, boosting functional effectiveness and minimizing carbon discharges.
Their thin profile permits retrofitting in space-limited locations where conventional cladding can not be set up.
4.2 Aerospace, Protection, and Wearable Modern Technology Assimilation
In aerospace, aerogel coatings protect sensitive elements from extreme temperature fluctuations during atmospheric re-entry or deep-space goals.
They are made use of in thermal defense systems (TPS), satellite real estates, and astronaut match linings, where weight cost savings directly convert to minimized launch costs.
In defense applications, aerogel-coated textiles provide light-weight thermal insulation for personnel and equipment in frozen or desert environments.
Wearable technology benefits from flexible aerogel composites that maintain body temperature level in clever garments, outdoor gear, and medical thermal law systems.
Furthermore, research is discovering aerogel layers with ingrained sensors or phase-change materials (PCMs) for flexible, receptive insulation that adjusts to environmental problems.
In conclusion, aerogel coatings exhibit the power of nanoscale design to solve macro-scale obstacles in energy, safety, and sustainability.
By incorporating ultra-low thermal conductivity with mechanical adaptability and multifunctional capabilities, they are redefining the limits of surface design.
As production expenses decrease and application approaches end up being much more effective, aerogel finishings are poised to end up being a common material in next-generation insulation, protective systems, and smart surface areas across industries.
