1. Material Principles and Morphological Advantages
1.1 Crystal Structure and Chemical Structure

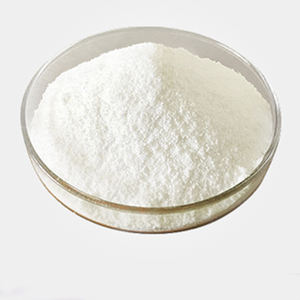

(Spherical alumina)
Round alumina, or round light weight aluminum oxide (Al ₂ O FOUR), is a synthetically created ceramic product defined by a distinct globular morphology and a crystalline structure predominantly in the alpha (α) stage.
Alpha-alumina, the most thermodynamically stable polymorph, features a hexagonal close-packed plan of oxygen ions with light weight aluminum ions inhabiting two-thirds of the octahedral interstices, causing high latticework power and extraordinary chemical inertness.
This phase exhibits exceptional thermal security, preserving honesty approximately 1800 ° C, and withstands reaction with acids, antacid, and molten steels under most industrial conditions.
Unlike irregular or angular alumina powders stemmed from bauxite calcination, spherical alumina is crafted with high-temperature procedures such as plasma spheroidization or fire synthesis to accomplish uniform satiation and smooth surface structure.
The makeover from angular forerunner particles– frequently calcined bauxite or gibbsite– to dense, isotropic balls removes sharp edges and inner porosity, boosting packaging performance and mechanical durability.
High-purity qualities (≥ 99.5% Al ₂ O ₃) are crucial for electronic and semiconductor applications where ionic contamination should be minimized.
1.2 Bit Geometry and Packaging Behavior
The defining attribute of spherical alumina is its near-perfect sphericity, commonly evaluated by a sphericity index > 0.9, which considerably affects its flowability and packaging density in composite systems.
Unlike angular fragments that interlock and create spaces, round particles roll past each other with marginal friction, enabling high solids loading throughout solution of thermal interface products (TIMs), encapsulants, and potting substances.
This geometric uniformity permits optimum theoretical packaging thickness going beyond 70 vol%, far exceeding the 50– 60 vol% normal of irregular fillers.
Higher filler loading directly converts to enhanced thermal conductivity in polymer matrices, as the continuous ceramic network offers reliable phonon transportation pathways.
In addition, the smooth surface lowers endure handling devices and decreases thickness increase during mixing, enhancing processability and dispersion security.
The isotropic nature of rounds also protects against orientation-dependent anisotropy in thermal and mechanical homes, ensuring constant performance in all instructions.
2. Synthesis Methods and Quality Assurance
2.1 High-Temperature Spheroidization Strategies
The production of round alumina mostly relies upon thermal approaches that thaw angular alumina particles and permit surface tension to reshape them into balls.
( Spherical alumina)
Plasma spheroidization is the most widely made use of industrial method, where alumina powder is injected into a high-temperature plasma flame (up to 10,000 K), triggering immediate melting and surface area tension-driven densification right into excellent balls.
The liquified droplets solidify quickly during trip, creating thick, non-porous bits with uniform dimension distribution when coupled with accurate category.
Different techniques include flame spheroidization using oxy-fuel lanterns and microwave-assisted heating, though these typically provide reduced throughput or less control over fragment dimension.
The beginning material’s pureness and bit size distribution are vital; submicron or micron-scale precursors produce similarly sized rounds after handling.
Post-synthesis, the item undergoes strenuous sieving, electrostatic separation, and laser diffraction evaluation to make sure limited particle size circulation (PSD), usually varying from 1 to 50 µm relying on application.
2.2 Surface Alteration and Useful Customizing
To boost compatibility with natural matrices such as silicones, epoxies, and polyurethanes, spherical alumina is usually surface-treated with coupling representatives.
Silane combining agents– such as amino, epoxy, or vinyl useful silanes– form covalent bonds with hydroxyl teams on the alumina surface while offering organic capability that connects with the polymer matrix.
This therapy enhances interfacial adhesion, minimizes filler-matrix thermal resistance, and prevents pile, causing more uniform compounds with remarkable mechanical and thermal efficiency.
Surface area layers can likewise be crafted to impart hydrophobicity, boost diffusion in nonpolar materials, or make it possible for stimuli-responsive behavior in clever thermal materials.
Quality control consists of dimensions of wager surface, faucet thickness, thermal conductivity (generally 25– 35 W/(m · K )for thick α-alumina), and impurity profiling using ICP-MS to leave out Fe, Na, and K at ppm levels.
Batch-to-batch consistency is important for high-reliability applications in electronics and aerospace.
3. Thermal and Mechanical Performance in Composites
3.1 Thermal Conductivity and Interface Engineering
Spherical alumina is mostly utilized as a high-performance filler to enhance the thermal conductivity of polymer-based materials made use of in digital product packaging, LED lighting, and power components.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), loading with 60– 70 vol% round alumina can boost this to 2– 5 W/(m · K), adequate for reliable warm dissipation in portable devices.
The high intrinsic thermal conductivity of α-alumina, integrated with marginal phonon spreading at smooth particle-particle and particle-matrix user interfaces, allows reliable heat transfer with percolation networks.
Interfacial thermal resistance (Kapitza resistance) continues to be a limiting factor, but surface area functionalization and optimized dispersion techniques assist minimize this barrier.
In thermal user interface products (TIMs), spherical alumina lowers call resistance between heat-generating components (e.g., CPUs, IGBTs) and heat sinks, avoiding overheating and extending tool lifespan.
Its electric insulation (resistivity > 10 ¹² Ω · cm) guarantees safety and security in high-voltage applications, distinguishing it from conductive fillers like metal or graphite.
3.2 Mechanical Stability and Reliability
Beyond thermal performance, spherical alumina improves the mechanical robustness of compounds by enhancing firmness, modulus, and dimensional security.
The spherical form distributes stress consistently, lowering crack initiation and breeding under thermal cycling or mechanical lots.
This is particularly vital in underfill materials and encapsulants for flip-chip and 3D-packaged devices, where coefficient of thermal growth (CTE) mismatch can generate delamination.
By adjusting filler loading and fragment dimension distribution (e.g., bimodal blends), the CTE of the compound can be tuned to match that of silicon or printed motherboard, minimizing thermo-mechanical anxiety.
Furthermore, the chemical inertness of alumina prevents deterioration in moist or harsh environments, making certain long-term reliability in vehicle, commercial, and outdoor electronic devices.
4. Applications and Technical Advancement
4.1 Electronic Devices and Electric Automobile Equipments
Round alumina is a vital enabler in the thermal management of high-power electronics, consisting of insulated gate bipolar transistors (IGBTs), power materials, and battery administration systems in electric vehicles (EVs).
In EV battery packs, it is incorporated into potting substances and phase adjustment products to avoid thermal runaway by equally distributing warmth throughout cells.
LED manufacturers utilize it in encapsulants and secondary optics to maintain lumen outcome and shade consistency by reducing joint temperature.
In 5G facilities and data centers, where warm change densities are climbing, round alumina-filled TIMs make certain stable procedure of high-frequency chips and laser diodes.
Its duty is expanding right into advanced product packaging modern technologies such as fan-out wafer-level product packaging (FOWLP) and ingrained die systems.
4.2 Emerging Frontiers and Sustainable Technology
Future growths concentrate on hybrid filler systems integrating spherical alumina with boron nitride, aluminum nitride, or graphene to achieve synergistic thermal efficiency while maintaining electrical insulation.
Nano-spherical alumina (sub-100 nm) is being checked out for transparent ceramics, UV finishes, and biomedical applications, though challenges in dispersion and expense continue to be.
Additive production of thermally conductive polymer compounds utilizing spherical alumina makes it possible for facility, topology-optimized warm dissipation frameworks.
Sustainability efforts consist of energy-efficient spheroidization processes, recycling of off-spec product, and life-cycle evaluation to decrease the carbon footprint of high-performance thermal materials.
In recap, round alumina represents an important engineered material at the junction of porcelains, composites, and thermal scientific research.
Its distinct combination of morphology, purity, and performance makes it crucial in the ongoing miniaturization and power aggravation of modern digital and power systems.
