Introduction: Secret gadgets in power electronics
Silicon-controlled rectifiers (SCRs), also known as thyristors, are semiconductor power devices with a four-layer three-way joint structure (PNPN). Considering that its intro in the 1950s, SCRs have actually been extensively used in commercial automation, power systems, home appliance control and various other fields as a result of their high withstand voltage, large current bring capacity, quick action and basic control. With the development of modern technology, SCRs have actually progressed into several kinds, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions between these types are not just reflected in the framework and functioning concept, yet also establish their applicability in various application scenarios. This write-up will begin with a technical viewpoint, integrated with specific parameters, to deeply evaluate the major distinctions and common uses these four SCRs.
Unidirectional SCR: Fundamental and stable application core
Unidirectional SCR is one of the most fundamental and usual kind of thyristor. Its framework is a four-layer three-junction PNPN arrangement, consisting of three electrodes: anode (A), cathode (K) and gateway (G). It only allows current to move in one instructions (from anode to cathode) and switches on after eviction is set off. When switched on, even if the gate signal is gotten rid of, as long as the anode current is higher than the holding present (typically much less than 100mA), the SCR stays on.

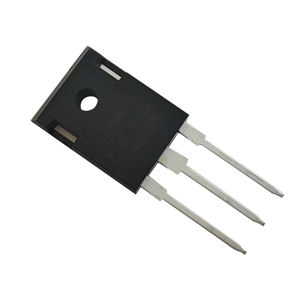

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and existing resistance, with an ahead repetitive optimal voltage (V DRM) of as much as 6500V and a ranked on-state typical current (ITAV) of approximately 5000A. For that reason, it is commonly used in DC motor control, commercial heater, uninterruptible power supply (UPS) rectification components, power conditioning gadgets and other celebrations that require continual conduction and high power processing. Its advantages are easy framework, low cost and high integrity, and it is a core part of several traditional power control systems.
Bidirectional SCR (TRIAC): Perfect for air conditioning control
Unlike unidirectional SCR, bidirectional SCR, likewise referred to as TRIAC, can achieve bidirectional conduction in both positive and adverse fifty percent cycles. This structure includes two anti-parallel SCRs, which enable TRIAC to be triggered and activated any time in the a/c cycle without transforming the circuit link method. The balanced transmission voltage series of TRIAC is generally ± 400 ~ 800V, the maximum load current is about 100A, and the trigger current is less than 50mA.
Because of the bidirectional conduction features of TRIAC, it is especially ideal for air conditioner dimming and rate control in family appliances and consumer electronic devices. For instance, tools such as light dimmers, fan controllers, and ac system follower speed regulatory authorities all rely on TRIAC to attain smooth power regulation. Furthermore, TRIAC also has a lower driving power need and is suitable for incorporated style, so it has actually been widely made use of in wise home systems and small devices. Although the power thickness and switching rate of TRIAC are not like those of brand-new power devices, its low cost and convenient usage make it a vital gamer in the field of little and average power AC control.
Gate Turn-Off Thyristor (GTO): A high-performance agent of energetic control
Entrance Turn-Off Thyristor (GTO) is a high-performance power gadget created on the basis of conventional SCR. Unlike common SCR, which can just be shut off passively, GTO can be turned off proactively by using an unfavorable pulse present to the gate, thus accomplishing more flexible control. This function makes GTO perform well in systems that need regular start-stop or rapid feedback.

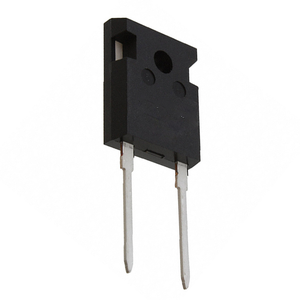

(Thyristor Rectifier)
The technological criteria of GTO reveal that it has very high power managing ability: the turn-off gain has to do with 4 ~ 5, the optimum operating voltage can reach 6000V, and the optimum operating current depends on 6000A. The turn-on time is about 1μs, and the turn-off time is 2 ~ 5μs. These efficiency indicators make GTO commonly used in high-power situations such as electric locomotive grip systems, large inverters, industrial electric motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is relatively intricate and has high changing losses, its performance under high power and high dynamic feedback needs is still irreplaceable.
Light-controlled thyristor (LTT): A trusted option in the high-voltage seclusion environment
Light-controlled thyristor (LTT) utilizes optical signals rather than electric signals to activate transmission, which is its greatest attribute that identifies it from various other sorts of SCRs. The optical trigger wavelength of LTT is normally in between 850nm and 950nm, the action time is gauged in nanoseconds, and the insulation level can be as high as 100kV or over. This optoelectronic seclusion device greatly boosts the system’s anti-electromagnetic interference capacity and security.
LTT is generally utilized in ultra-high voltage straight present transmission (UHVDC), power system relay protection tools, electro-magnetic compatibility security in medical tools, and armed forces radar interaction systems etc, which have incredibly high demands for safety and security and security. As an example, many converter terminals in China’s “West-to-East Power Transmission” task have embraced LTT-based converter shutoff modules to guarantee steady procedure under exceptionally high voltage problems. Some advanced LTTs can also be integrated with entrance control to achieve bidirectional transmission or turn-off functions, further broadening their application array and making them a perfect selection for fixing high-voltage and high-current control issues.
