1. Product Principles and Microstructural Layout
1.1 Composition and Crystallographic Security of Alumina
(Alumina Ceramic Nozzles)
Alumina (Al Two O ₃), particularly in its alpha stage, is a fully oxidized ceramic with a corundum-type hexagonal close-packed structure, offering outstanding thermal security, chemical inertness, and mechanical toughness at elevated temperature levels.
High-purity alumina (typically 95– 99.9% Al Two O ₃) is favored for nozzle applications due to its minimal impurity material, which lowers grain limit weakening and enhances resistance to thermal and chemical degradation.
The microstructure, including penalty, equiaxed grains, is engineered throughout sintering to lessen porosity and optimize thickness, straight influencing the nozzle’s erosion resistance and structural integrity under high-velocity liquid flow.
Ingredients such as MgO are commonly introduced in trace total up to prevent abnormal grain development throughout sintering, making certain a consistent microstructure that supports long-term dependability.
1.2 Mechanical and Thermal Features Relevant to Nozzle Performance
Alumina porcelains show a Vickers hardness going beyond 1800 HV, making them highly resistant to abrasive wear from particulate-laden fluids, a crucial feature in applications such as sandblasting and rough waterjet cutting.
With a flexural stamina of 300– 500 MPa and a compressive toughness over 2 GPa, alumina nozzles preserve dimensional security under high-pressure operation, normally varying from 100 to 400 MPa in industrial systems.
Thermally, alumina retains its mechanical properties approximately 1600 ° C, with a reduced thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) that gives outstanding resistance to thermal shock– necessary when revealed to quick temperature level variations throughout start-up or closure cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without causing thermal gradients that could bring about cracking, balancing insulation and heat administration requirements.
2. Production Processes and Geometric Precision
2.1 Forming and Sintering Techniques for Nozzle Manufacture
The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is processed right into an environment-friendly body utilizing methods such as cool isostatic pushing (CIP), shot molding, or extrusion, relying on the desired geometry and set size.

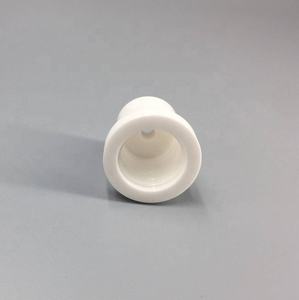

( Alumina Ceramic Nozzles)
Cold isostatic pushing applies uniform stress from all directions, producing a homogeneous thickness distribution essential for lessening problems during sintering.
Injection molding is used for complicated nozzle forms with interior tapers and fine orifices, allowing high dimensional precision and reproducibility in automation.
After forming, the eco-friendly compacts undertake a two-stage thermal treatment: debinding to get rid of organic binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to achieve near-theoretical density with solid-state diffusion.
Specific control of sintering environment and heating/cooling prices is necessary to avoid warping, splitting, or grain coarsening that might endanger nozzle efficiency.
2.2 Machining, Polishing, and Quality Control
Post-sintering, alumina nozzles often need precision machining to attain limited resistances, especially in the orifice region where flow dynamics are most conscious surface coating and geometry.
Diamond grinding and lapping are used to fine-tune inner and outside surface areas, accomplishing surface area roughness worths below 0.1 µm, which minimizes circulation resistance and protects against bit build-up.
The orifice, usually varying from 0.3 to 3.0 mm in diameter, should be free of micro-cracks and chamfers to make sure laminar circulation and regular spray patterns.
Non-destructive screening techniques such as optical microscopy, X-ray evaluation, and stress cycling tests are utilized to validate structural stability and efficiency uniformity prior to release.
Custom geometries, consisting of convergent-divergent (de Laval) accounts for supersonic circulation or multi-hole ranges for fan spray patterns, are increasingly produced using advanced tooling and computer-aided layout (CAD)-driven manufacturing.
3. Practical Benefits Over Alternate Nozzle Products
3.1 Superior Disintegration and Rust Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina exhibits far higher resistance to unpleasant wear, especially in settings entailing silica sand, garnet, or other hard abrasives made use of in surface area prep work and cutting.
Metal nozzles deteriorate quickly due to micro-fracturing and plastic contortion, requiring regular substitute, whereas alumina nozzles can last 3– 5 times much longer, dramatically reducing downtime and operational costs.
Furthermore, alumina is inert to most acids, alkalis, and solvents, making it appropriate for chemical splashing, etching, and cleaning processes where metallic components would rust or pollute the liquid.
This chemical security is especially valuable in semiconductor manufacturing, pharmaceutical processing, and food-grade applications calling for high pureness.
3.2 Thermal and Electrical Insulation Characteristic
Alumina’s high electrical resistivity (> 10 ¹⁴ Ω · cm) makes it perfect for use in electrostatic spray finish systems, where it protects against fee leak and makes sure uniform paint atomization.
Its thermal insulation capability enables risk-free operation in high-temperature spraying settings, such as flame spraying or thermal cleaning, without warm transfer to surrounding components.
Unlike metals, alumina does not militarize undesirable chemical reactions in responsive fluid streams, protecting the honesty of sensitive formulations.
4. Industrial Applications and Technological Impact
4.1 Duties in Abrasive Jet Machining and Surface Therapy
Alumina ceramic nozzles are essential in rough blowing up systems for rust removal, paint stripping, and surface texturing in auto, aerospace, and building markets.
Their capacity to maintain a constant orifice size over extended usage makes certain consistent abrasive rate and effect angle, directly affecting surface finish top quality and procedure repeatability.
In unpleasant waterjet cutting, alumina focusing tubes direct the high-pressure water-abrasive mixture, holding up against abrasive forces that would swiftly weaken softer products.
4.2 Use in Additive Production, Spray Finishing, and Fluid Control
In thermal spray systems, such as plasma and fire spraying, alumina nozzles straight high-temperature gas circulations and molten bits onto substrates, benefiting from their thermal shock resistance and dimensional security.
They are additionally employed in precision spray nozzles for agricultural chemicals, inkjet systems, and fuel atomization, where wear resistance guarantees long-lasting dosing precision.
In 3D printing, specifically in binder jetting and product extrusion, alumina nozzles provide great powders or viscous pastes with very little obstructing or wear.
Emerging applications include microfluidic systems and lab-on-a-chip devices, where miniaturized alumina parts supply sturdiness and biocompatibility.
In summary, alumina ceramic nozzles stand for a critical crossway of materials science and industrial design.
Their exceptional mix of firmness, thermal security, and chemical resistance allows reputable performance in several of one of the most demanding fluid handling settings.
As industrial processes press toward higher stress, finer tolerances, and longer solution intervals, alumina porcelains remain to establish the requirement for resilient, high-precision flow control components.
