1. Fundamental Structure and Material Make-up
1.1 The Nanoscale Architecture of Aerogels

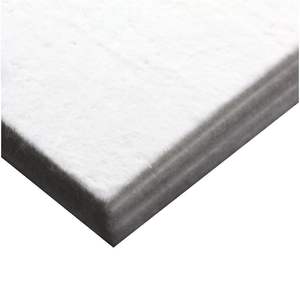

(Aerogel Blanket)
Aerogel coverings are innovative thermal insulation materials built on a distinct nanostructured framework, where a solid silica or polymer network covers an ultra-high porosity quantity– commonly going beyond 90% air.
This framework originates from the sol-gel process, in which a liquid precursor (commonly tetramethyl orthosilicate or TMOS) goes through hydrolysis and polycondensation to develop a wet gel, adhered to by supercritical or ambient pressure drying to remove the liquid without collapsing the delicate porous network.
The resulting aerogel includes interconnected nanoparticles (3– 5 nm in diameter) creating pores on the scale of 10– 50 nm, tiny sufficient to suppress air particle movement and therefore reduce conductive and convective warmth transfer.
This phenomenon, known as Knudsen diffusion, dramatically decreases the effective thermal conductivity of the product, often to values between 0.012 and 0.018 W/(m · K) at room temperature– among the most affordable of any type of strong insulator.
Despite their low density (as reduced as 0.003 g/cm FIVE), pure aerogels are naturally brittle, demanding support for functional use in flexible covering type.
1.2 Support and Composite Design
To get over frailty, aerogel powders or pillars are mechanically incorporated right into coarse substrates such as glass fiber, polyester, or aramid felts, developing a composite “covering” that retains phenomenal insulation while obtaining mechanical effectiveness.
The reinforcing matrix provides tensile stamina, adaptability, and handling toughness, enabling the material to be cut, bent, and installed in complicated geometries without substantial efficiency loss.
Fiber web content typically ranges from 5% to 20% by weight, very carefully stabilized to decrease thermal bridging– where fibers conduct warm throughout the covering– while making certain architectural integrity.
Some progressed styles integrate hydrophobic surface area treatments (e.g., trimethylsilyl groups) to stop moisture absorption, which can deteriorate insulation performance and advertise microbial development.
These modifications permit aerogel blankets to maintain secure thermal residential properties also in humid settings, broadening their applicability past controlled lab conditions.
2. Production Processes and Scalability

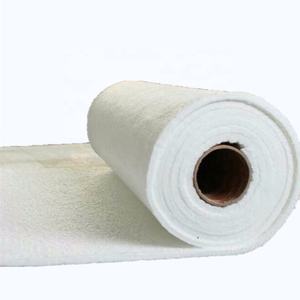

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The manufacturing of aerogel blankets begins with the formation of a wet gel within a fibrous floor covering, either by fertilizing the substratum with a fluid forerunner or by co-forming the gel and fiber network at the same time.
After gelation, the solvent have to be eliminated under problems that stop capillary tension from falling down the nanopores; historically, this required supercritical carbon monoxide two drying, a pricey and energy-intensive process.
Recent advancements have actually allowed ambient pressure drying out via surface alteration and solvent exchange, dramatically decreasing production prices and allowing continuous roll-to-roll manufacturing.
In this scalable procedure, long rolls of fiber mat are continuously covered with forerunner option, gelled, dried out, and surface-treated, permitting high-volume result appropriate for commercial applications.
This change has been critical in transitioning aerogel blankets from niche laboratory products to readily practical items made use of in building, energy, and transportation markets.
2.2 Quality Assurance and Performance Uniformity
Making sure uniform pore structure, consistent thickness, and dependable thermal performance throughout large manufacturing sets is crucial for real-world release.
Manufacturers employ rigorous quality control steps, consisting of laser scanning for thickness variant, infrared thermography for thermal mapping, and gravimetric analysis for wetness resistance.
Batch-to-batch reproducibility is necessary, especially in aerospace and oil & gas markets, where failure as a result of insulation breakdown can have extreme effects.
Furthermore, standard screening according to ASTM C177 (warmth flow meter) or ISO 9288 makes sure accurate reporting of thermal conductivity and allows reasonable contrast with standard insulators like mineral woollen or foam.
3. Thermal and Multifunctional Feature
3.1 Superior Insulation Across Temperature Ranges
Aerogel blankets exhibit exceptional thermal performance not just at ambient temperatures however likewise throughout severe varieties– from cryogenic conditions listed below -100 ° C to high temperatures exceeding 600 ° C, depending on the base product and fiber type.
At cryogenic temperatures, traditional foams might crack or lose efficiency, whereas aerogel blankets continue to be adaptable and maintain reduced thermal conductivity, making them excellent for LNG pipelines and tank.
In high-temperature applications, such as industrial heaters or exhaust systems, they provide efficient insulation with reduced thickness contrasted to bulkier alternatives, saving space and weight.
Their low emissivity and capability to reflect convected heat additionally enhance efficiency in glowing obstacle configurations.
This large operational envelope makes aerogel coverings distinctly functional amongst thermal administration remedies.
3.2 Acoustic and Fireproof Attributes
Past thermal insulation, aerogel blankets show noteworthy sound-dampening homes due to their open, tortuous pore structure that dissipates acoustic energy with viscous losses.
They are progressively used in auto and aerospace cabins to lower environmental pollution without including significant mass.
In addition, most silica-based aerogel coverings are non-combustible, accomplishing Class A fire ratings, and do not launch hazardous fumes when exposed to flame– critical for building security and public framework.
Their smoke density is extremely reduced, improving presence during emergency emptyings.
4. Applications in Sector and Emerging Technologies
4.1 Energy Performance in Structure and Industrial Equipment
Aerogel coverings are changing power efficiency in style and industrial engineering by making it possible for thinner, higher-performance insulation layers.
In structures, they are used in retrofitting historic frameworks where wall surface thickness can not be enhanced, or in high-performance façades and windows to lessen thermal bridging.
In oil and gas, they shield pipes carrying warm fluids or cryogenic LNG, reducing energy loss and stopping condensation or ice formation.
Their light-weight nature also lowers architectural load, specifically advantageous in overseas platforms and mobile units.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel coverings safeguard spacecraft from severe temperature fluctuations throughout re-entry and guard sensitive instruments from thermal biking in space.
NASA has actually utilized them in Mars wanderers and astronaut matches for passive thermal guideline.
Automotive makers incorporate aerogel insulation into electrical vehicle battery loads to avoid thermal runaway and improve safety and security and effectiveness.
Customer items, consisting of outdoor apparel, shoes, and outdoor camping gear, now include aerogel cellular linings for superior warmth without bulk.
As production prices decrease and sustainability enhances, aerogel blankets are poised to become traditional solutions in international efforts to decrease power intake and carbon emissions.
Finally, aerogel blankets represent a convergence of nanotechnology and practical engineering, providing unmatched thermal performance in a versatile, sturdy style.
Their capability to conserve energy, space, and weight while preserving safety and ecological compatibility settings them as essential enablers of sustainable technology throughout diverse industries.
